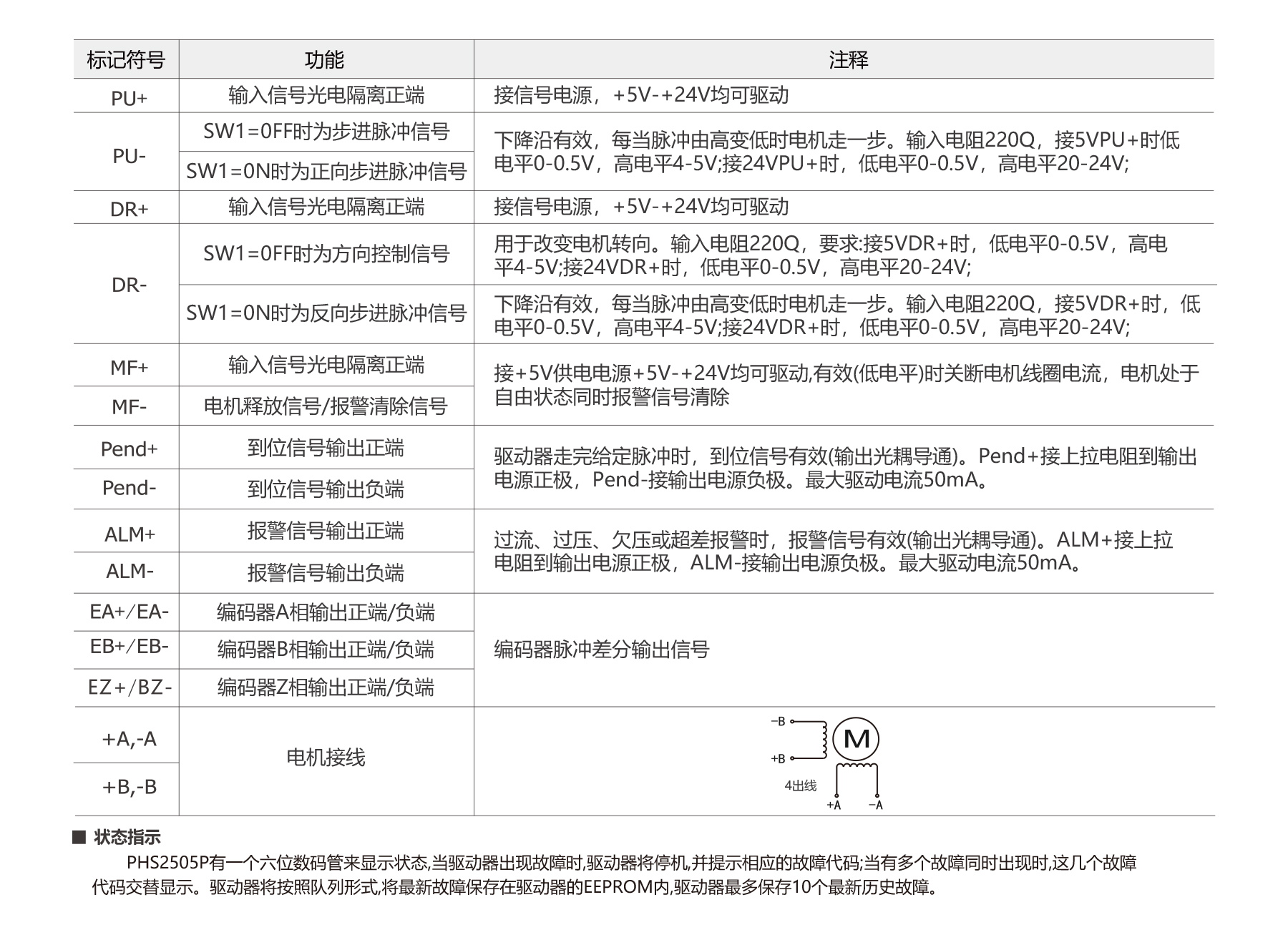

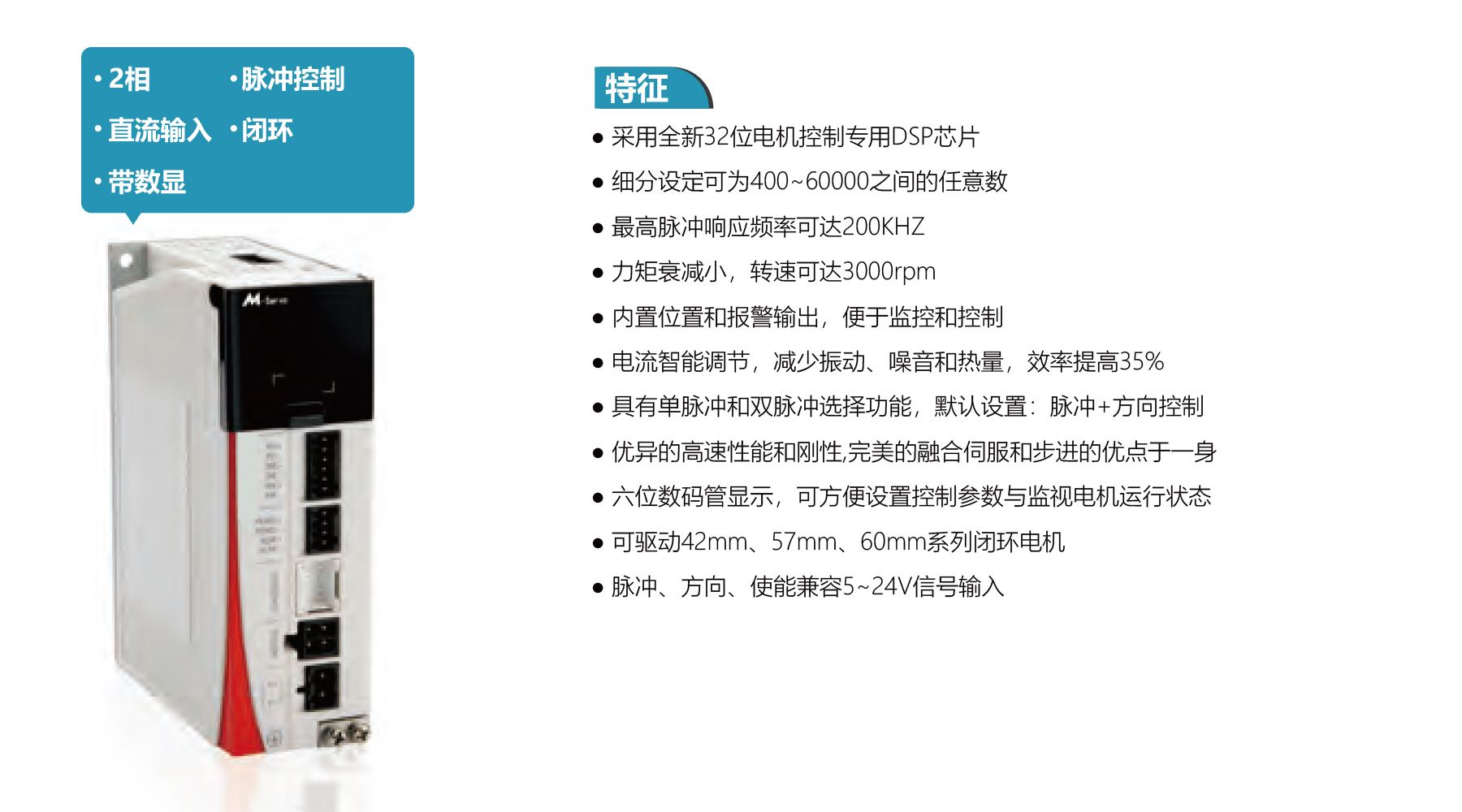

PHS2505P is a 2-phase closed-loop pulse control driver with a dedicated 32-bit DSP motor control chip and LED digital display. It supports DC24–50 V input, microsteps from 400–60,000, and a max pulse response of 200 kHz. Features include low torque attenuation, speeds up to 3000 rpm, built-in position and alarm outputs, intelligent current adjustment, and pulse/direction/enable inputs (5–24 V). Compact: 120×90×40 mm, 0.65 kg, suitable for 42–60 mm (NEMA17–24) closed-loop stepper motors.
