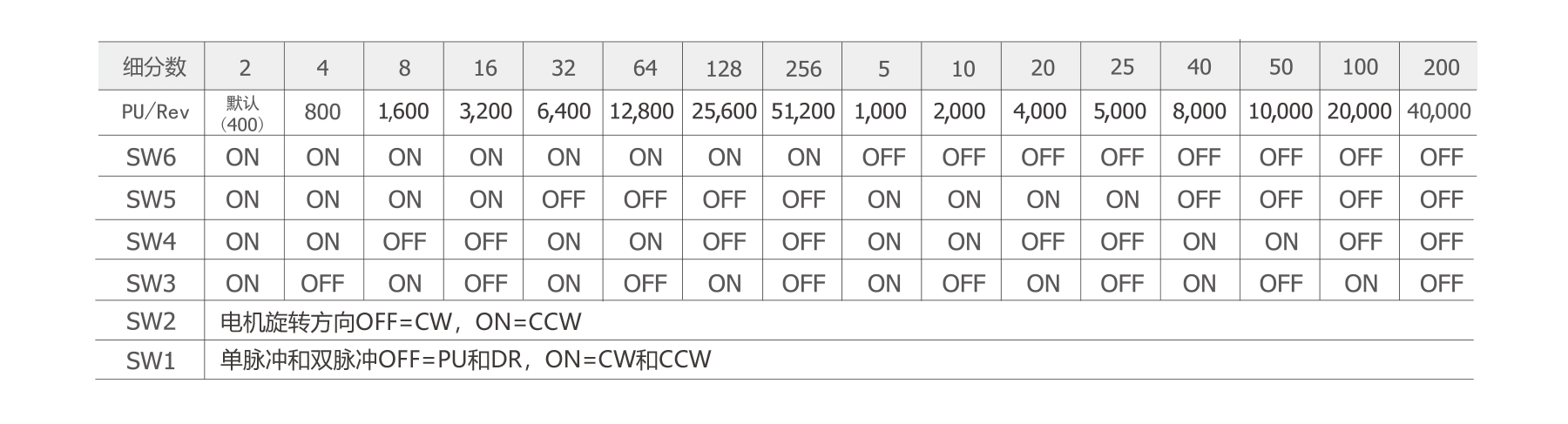

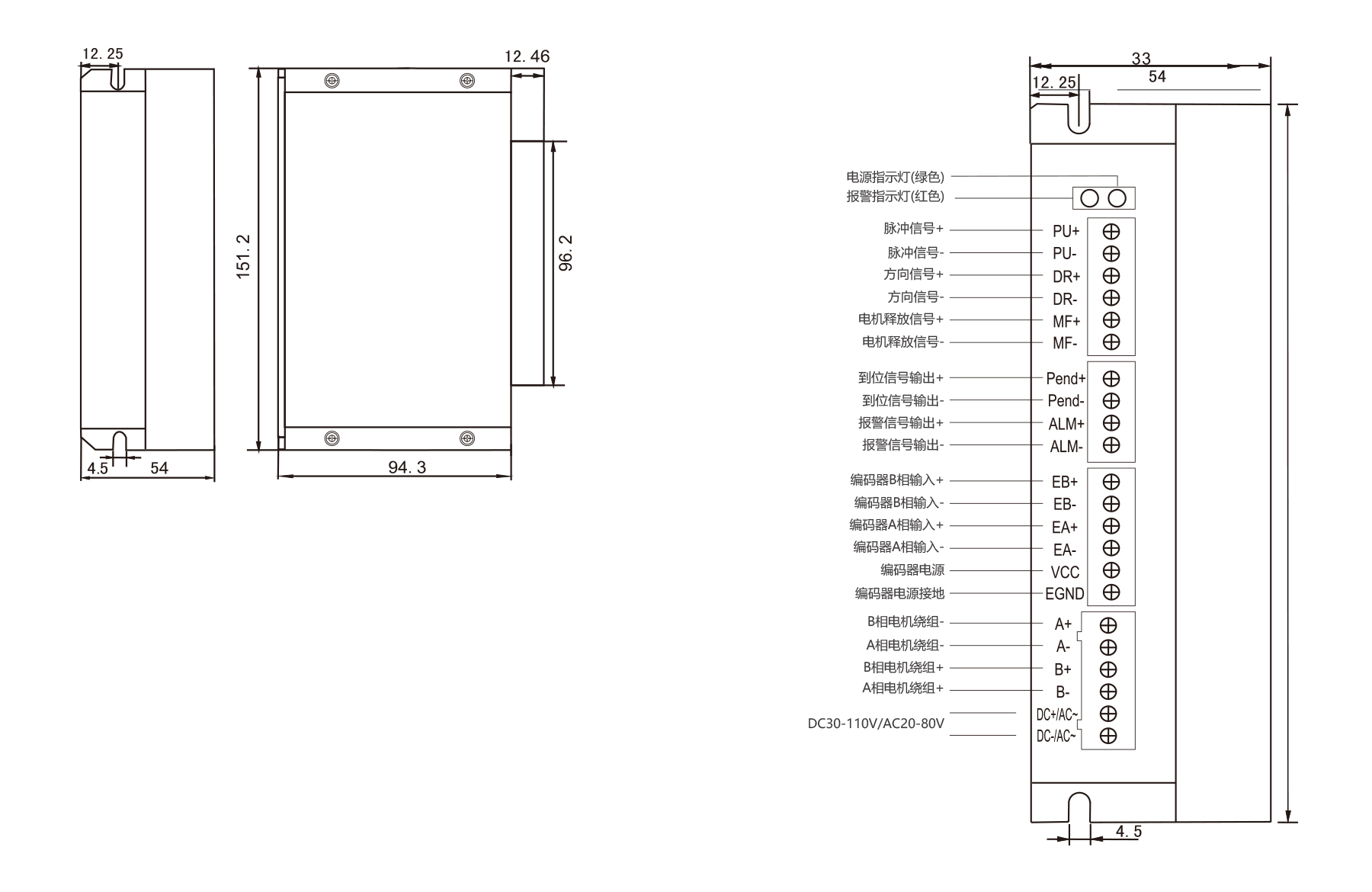

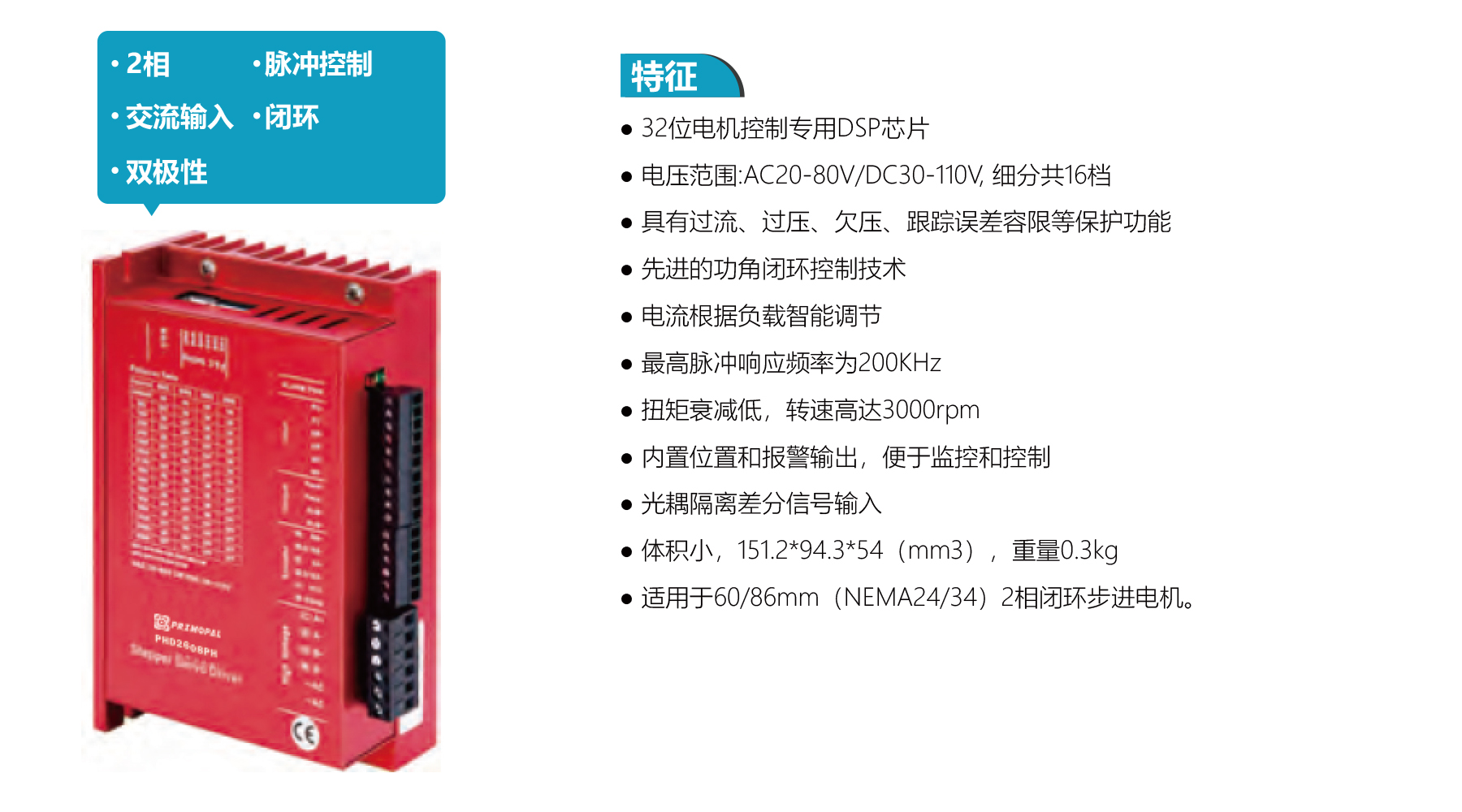

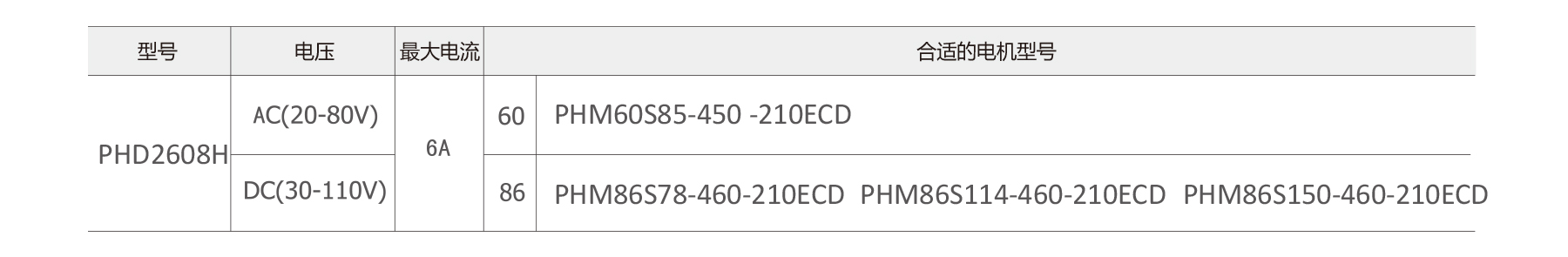

PHD2608PH is a 2-phase closed-loop pulse control driver with a 32-bit DSP motor control chip. It supports AC20–80 V or DC30–110 V input, 16 microstep settings, and a max pulse response of 200 kHz. Features include bipolar output, intelligent current adjustment, low torque attenuation, speeds up to 3000 rpm, built-in position and alarm outputs, optocoupler-isolated differential input, and comprehensive protection. Compact: 151.2×94.3×54 mm, 0.3 kg, suitable for 60–86 mm (NEMA24–34) closed-loop stepper motors.
