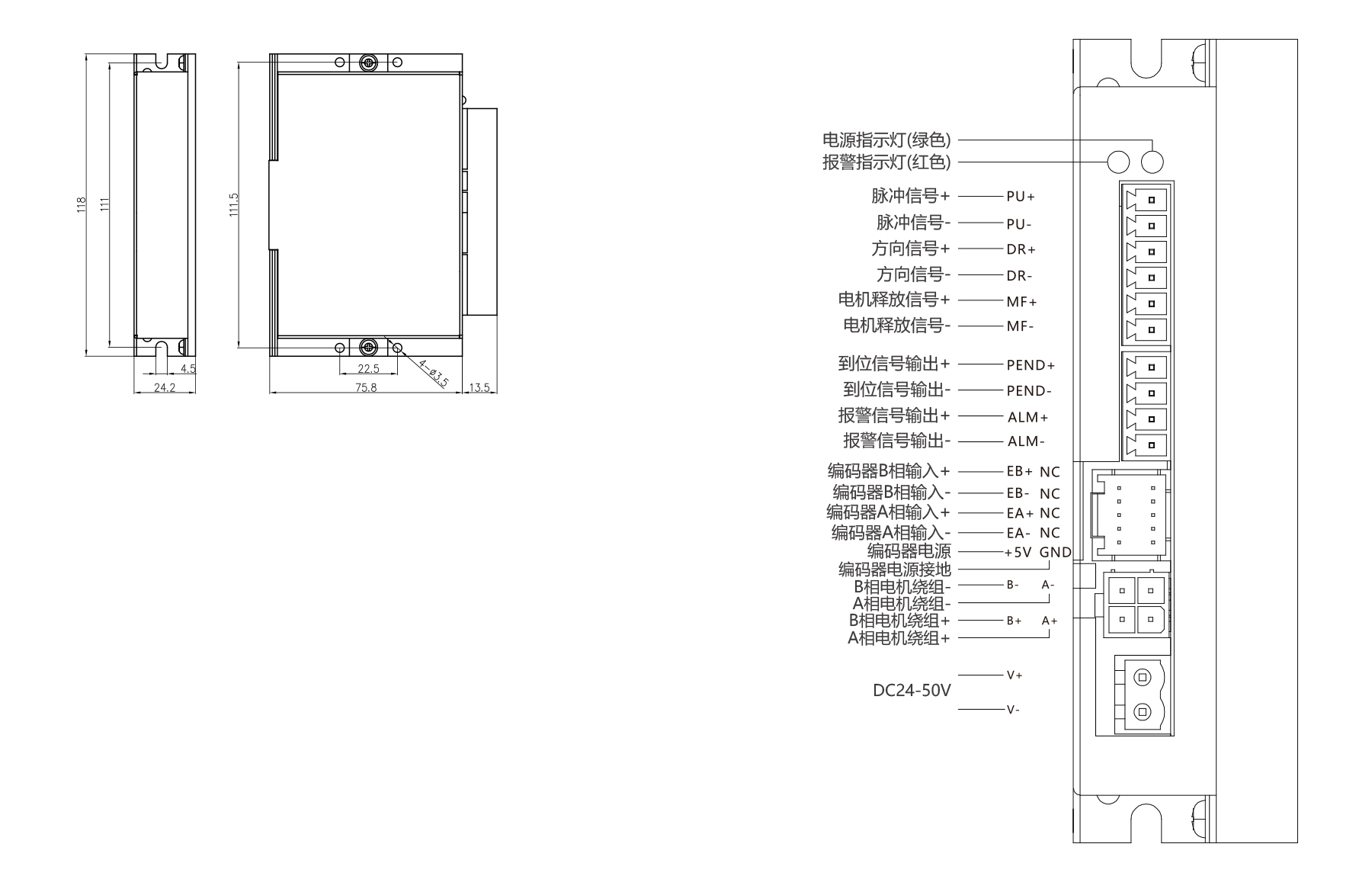

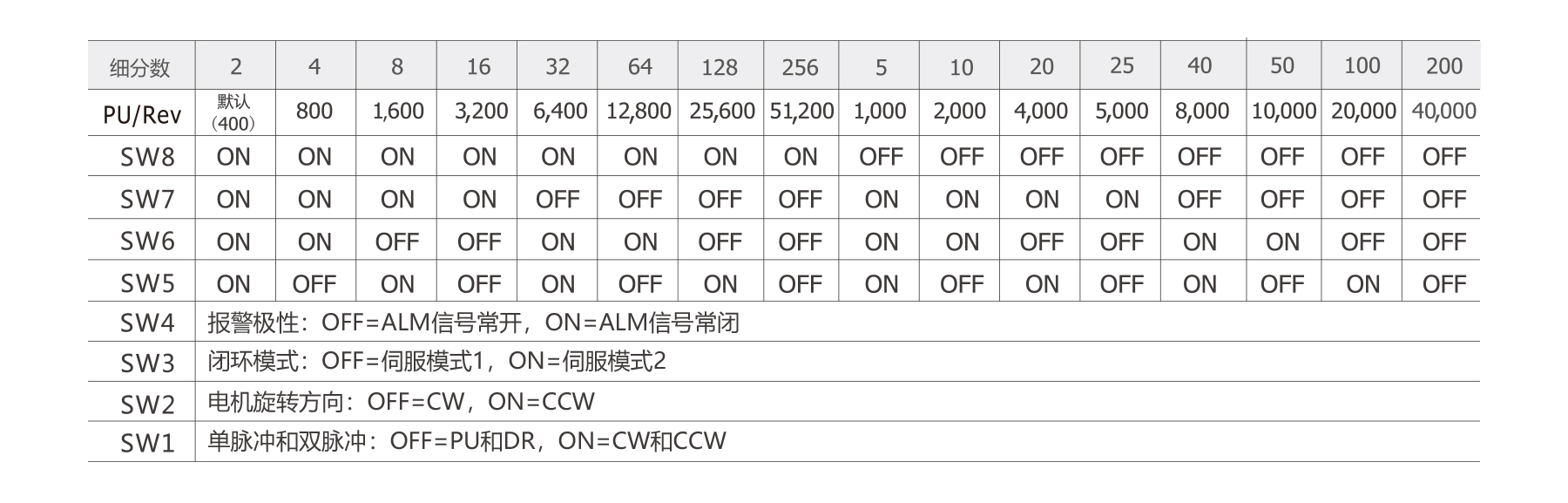

PHD2205P is a 2-phase closed-loop pulse control driver with a 32-bit DSP motor control chip. It features DC24–50 V input, 16 microstep settings, and a max pulse response of 200 kHz. Offers low torque attenuation, speeds up to 3000 rpm, intelligent current adjustment, built-in position and alarm outputs, and pulse+direction control. Compact: 118×76×24.2 mm, 0.3 kg.
