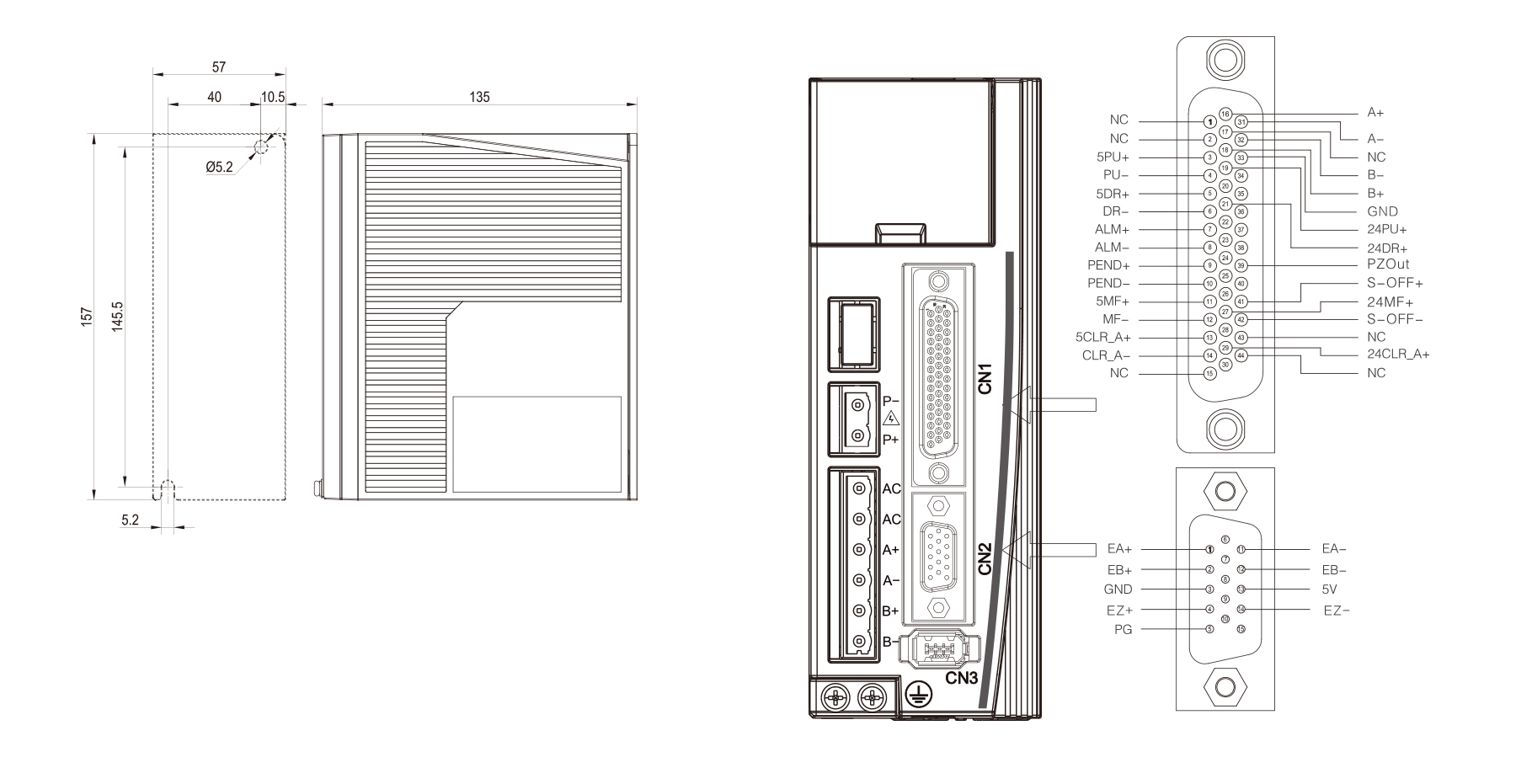

PHS2608PH is a 2-phase closed-loop pulse control driver with a dedicated 32-bit DSP motor control chip and six-digit digital display. It features AC input, advanced lead-angle and vector control, intelligent current adjustment, optocoupler-isolated differential inputs, microsteps from 400–60,000, and a max pulse response of 200 kHz. Protection includes over-current, overvoltage, and undervoltage. Compact: 157×135×57 mm, suitable for 86 mm (NEMA34) closed-loop stepper motors.
