PBLR62GE

PBLR62GE

PBLR62GE is a 48 VDC industrial brushless gear motor series with torque options from 0.25 to 0.75 N·m at 3,000 RPM. Offering power up to 235 W, it delivers stable performance, high efficiency, and compact design—ideal for smart automation and motion control systems. The pre-installed transmission type planetary gearbox has 2 different stages, and the highest reduction ratio is as high as 50:1.

Share This Product:

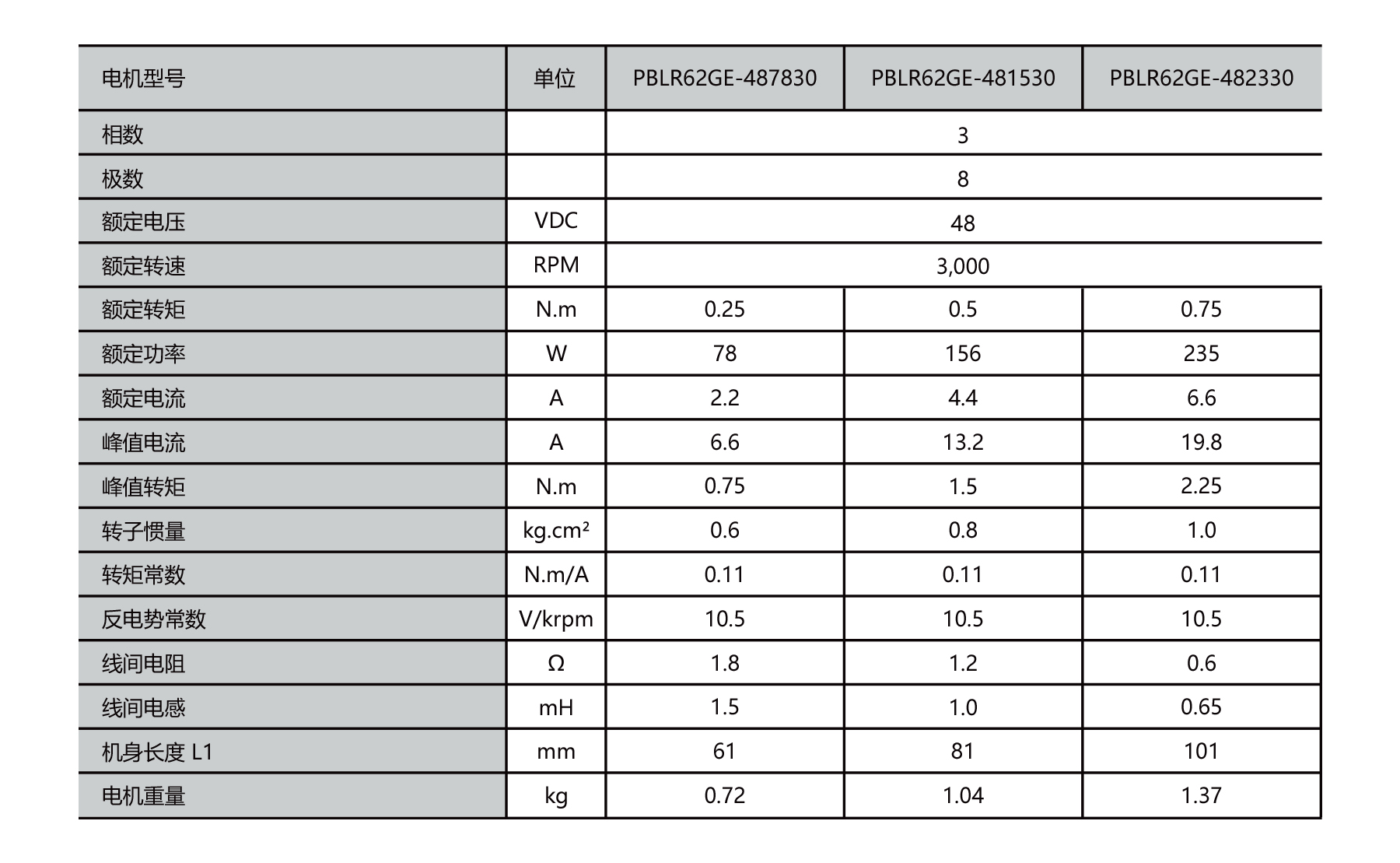

PBLR62GE dia.62mm tubular bldc geared motor voltage, speed, torque, current, and power

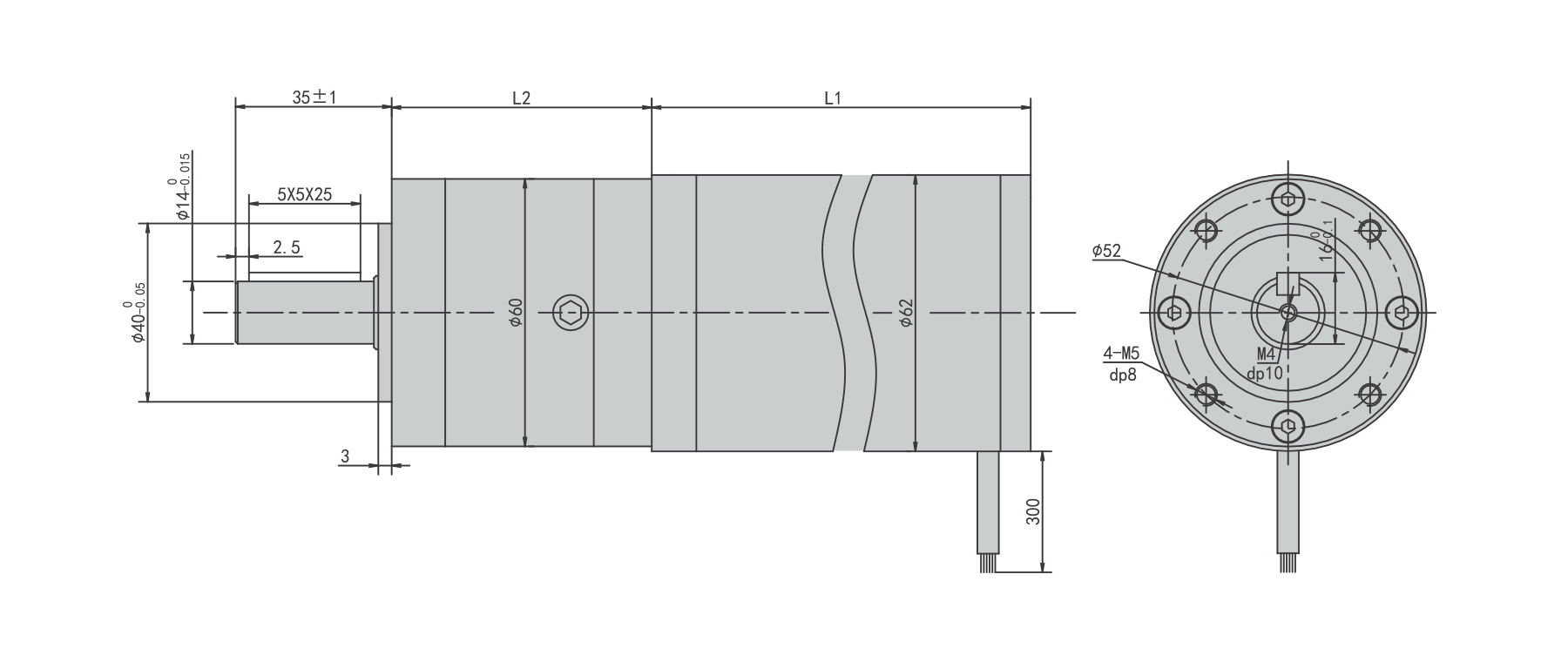

PBLR62GE dia.62mm BLDC planet geared motor outline dimensions drawing
PBLR62GE round dia.62mm Brushless geared motor winding and hall sensor wiring connection

Datasheet
