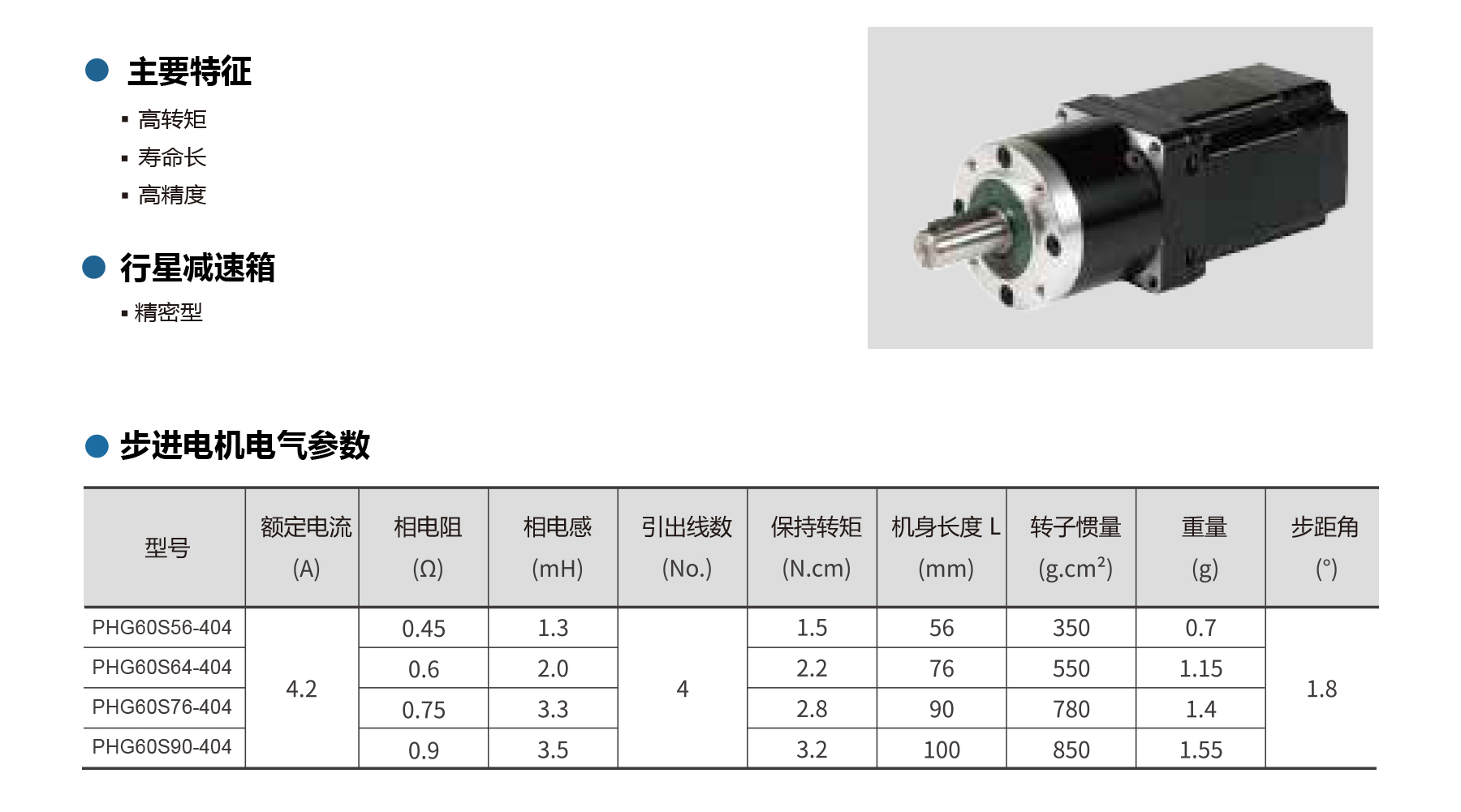

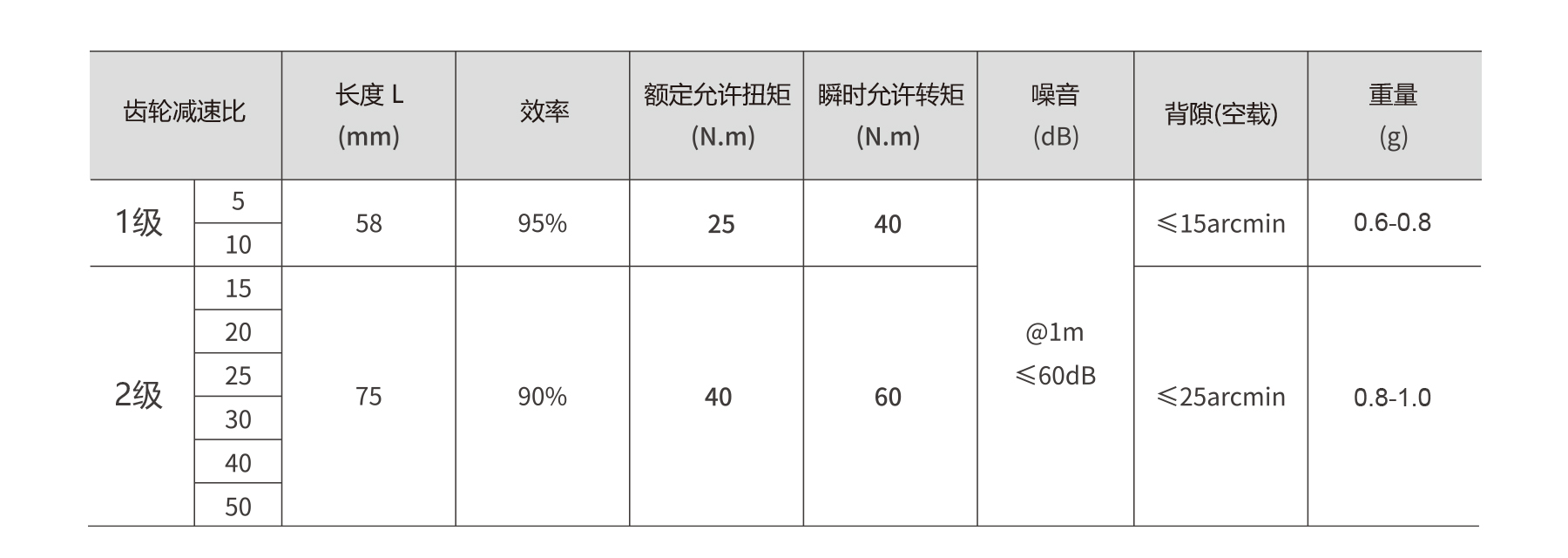

The PHG60S Series NEMA 24 stepper gear motors deliver high torque, long life, and precision performance with integrated planetary gearboxes. Featuring a 1.8° step angle, low backlash (≤25 arcmin), and quiet operation (≤60 dB), these motors provide smooth, reliable motion. With staged gear ratios, rated admissible torque ranges from 25 N·m to 40 N·m and efficiency up to 95%, making them ideal for CNC, and automation applications requiring compact, high-performance stepper gear motors.
