PASA180・27.0-48.0N.m

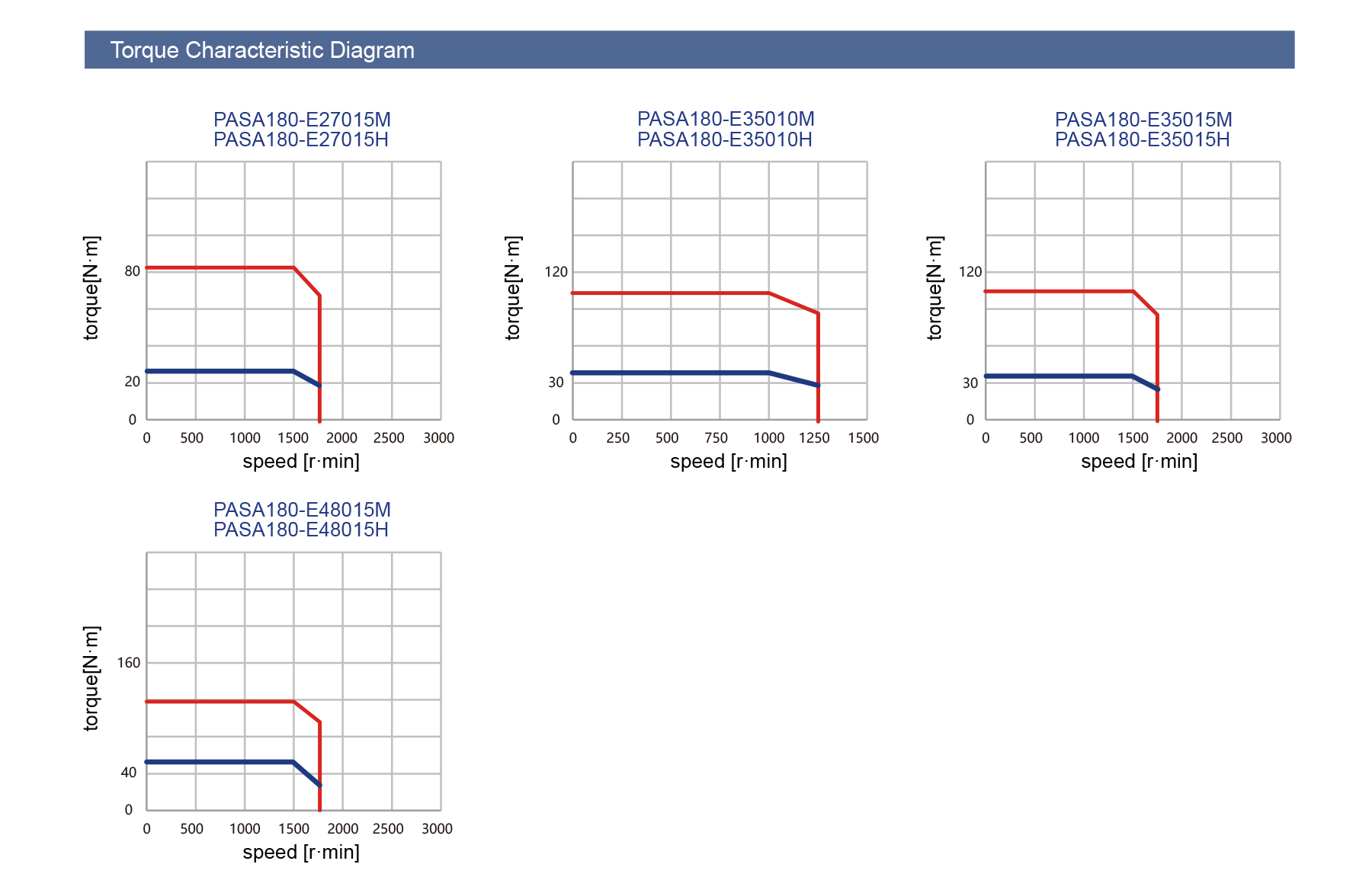

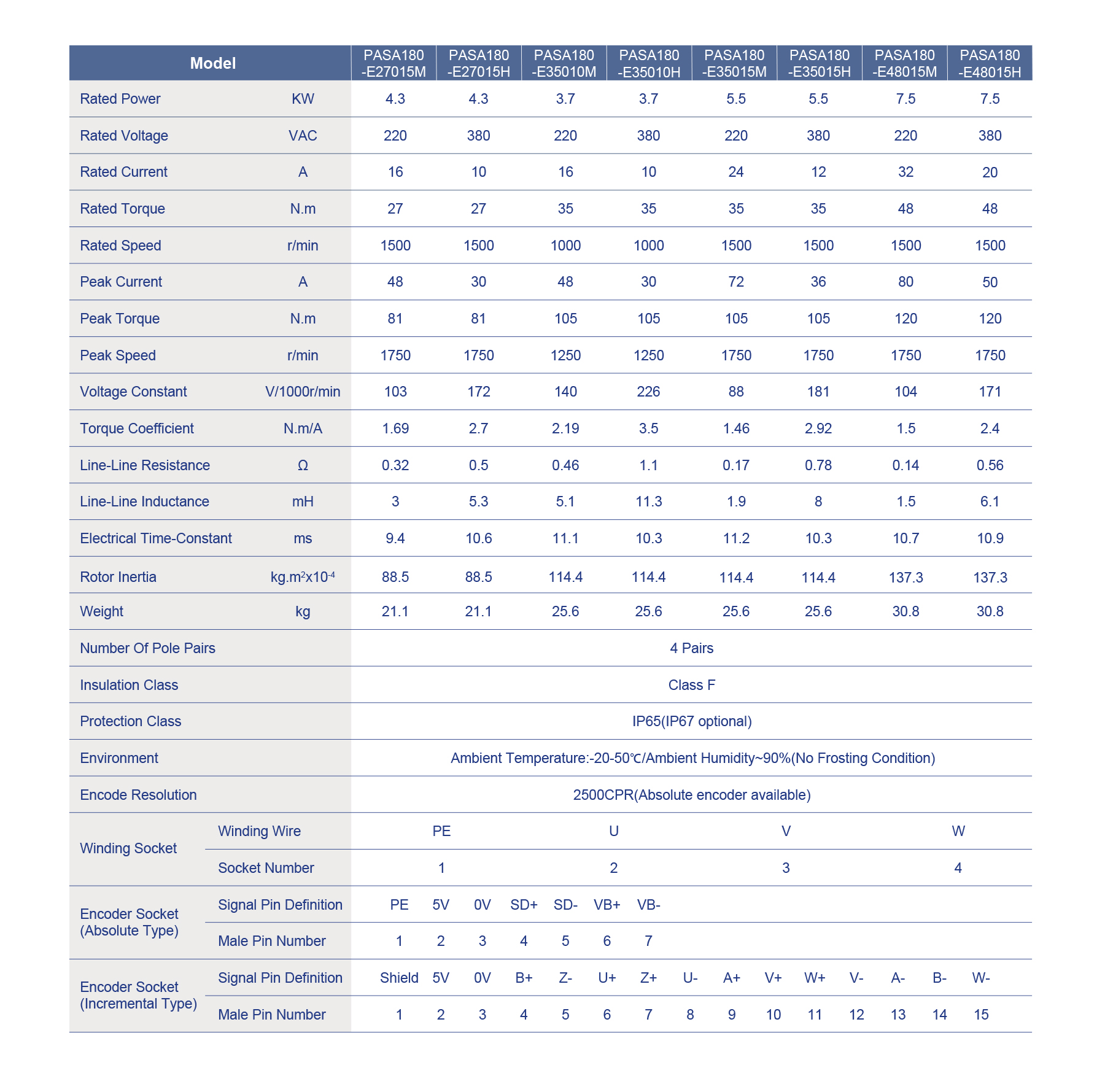

PASA180 Universal Series AC servo motors deliver 3.7-7.5kW power at 220/380V with rated torque from 27 to 48 N·m and speeds up to 1750rpm. Featuring IP65 protection (IP67 optional) and Class F insulation, these motors work reliably in -20 to +50°C environments. Optional 23-bit absolute encoder ensures precise feedback, ideal for heavy-duty automation, robotics, and industrial control.
Your message has been sent
Similar Products

□180mm
PASB180

□185mm
3.7~6.6KW
PASE215
