PASA130・10.0-15.0N.m

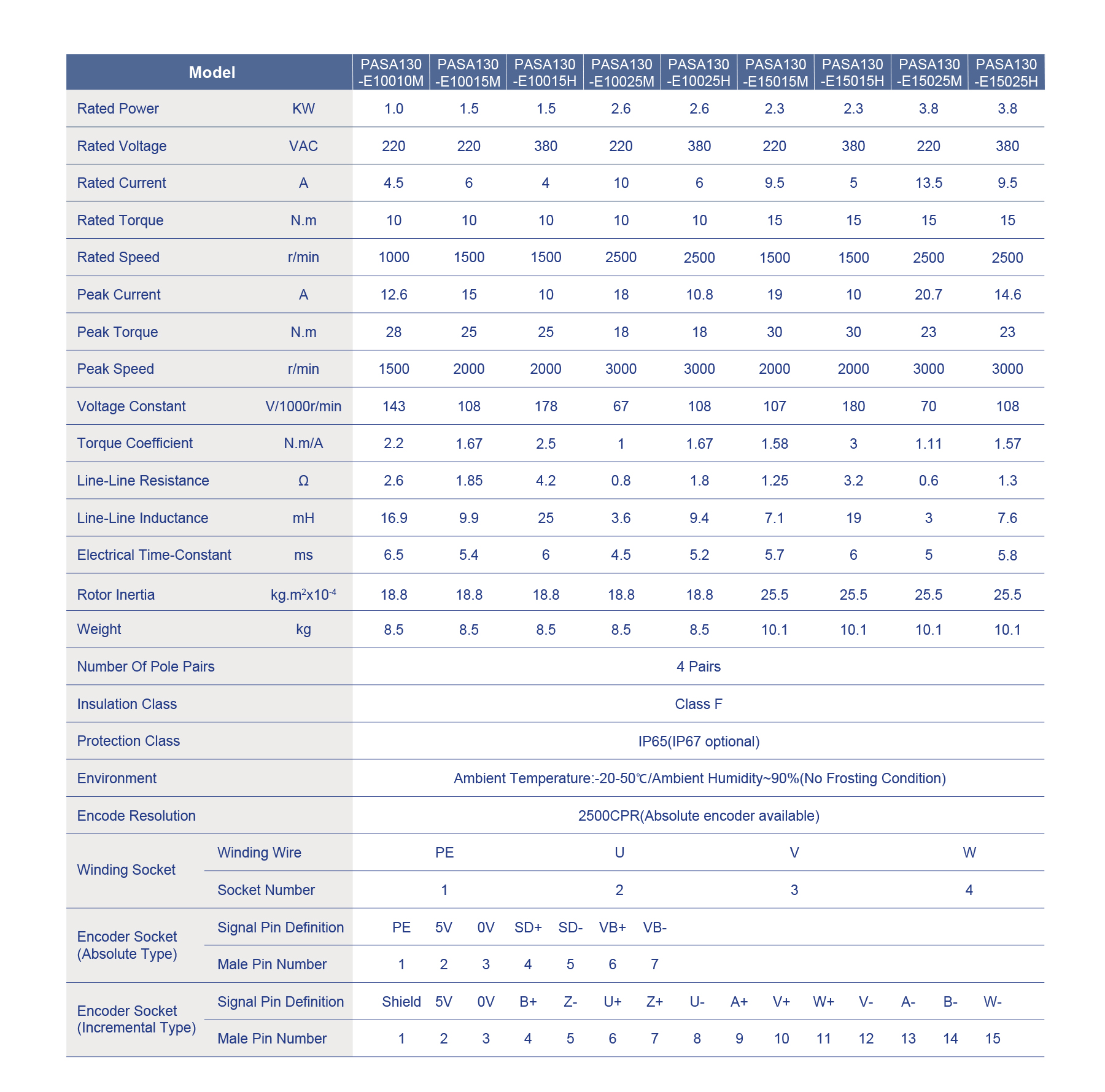

PASA130 Universal Series AC servo motors deliver 1.0-3.8kW power at 220/380V with rated torque of 10-15 N·m and speeds up to 3000rpm. Featuring IP65 protection (IP67 optional) and Class F insulation, they operate reliably in -20 to +50°C environments. Optional 23-bit absolute encoder provides precise feedback, ideal for industrial automation and robotics applications.
