PASB180

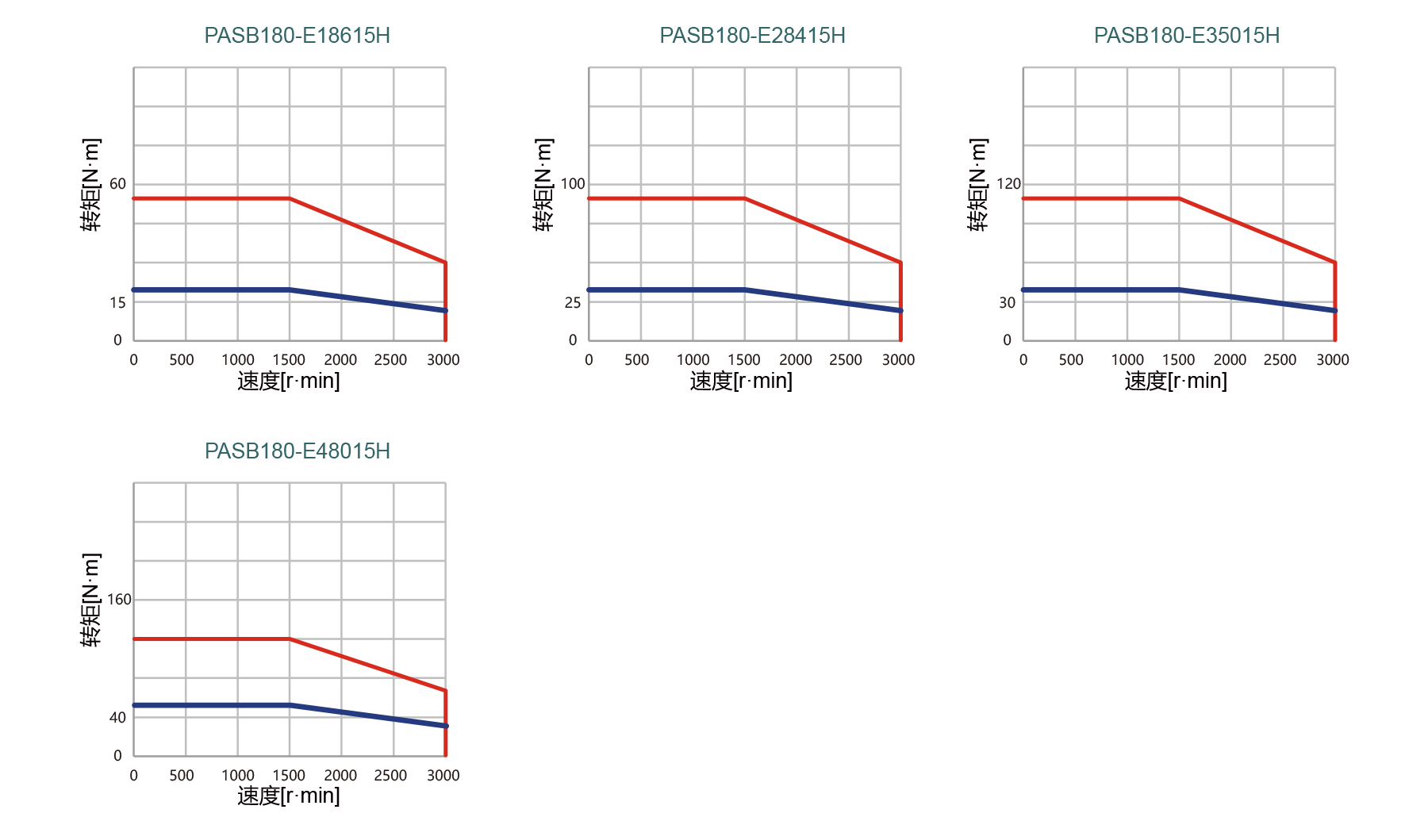

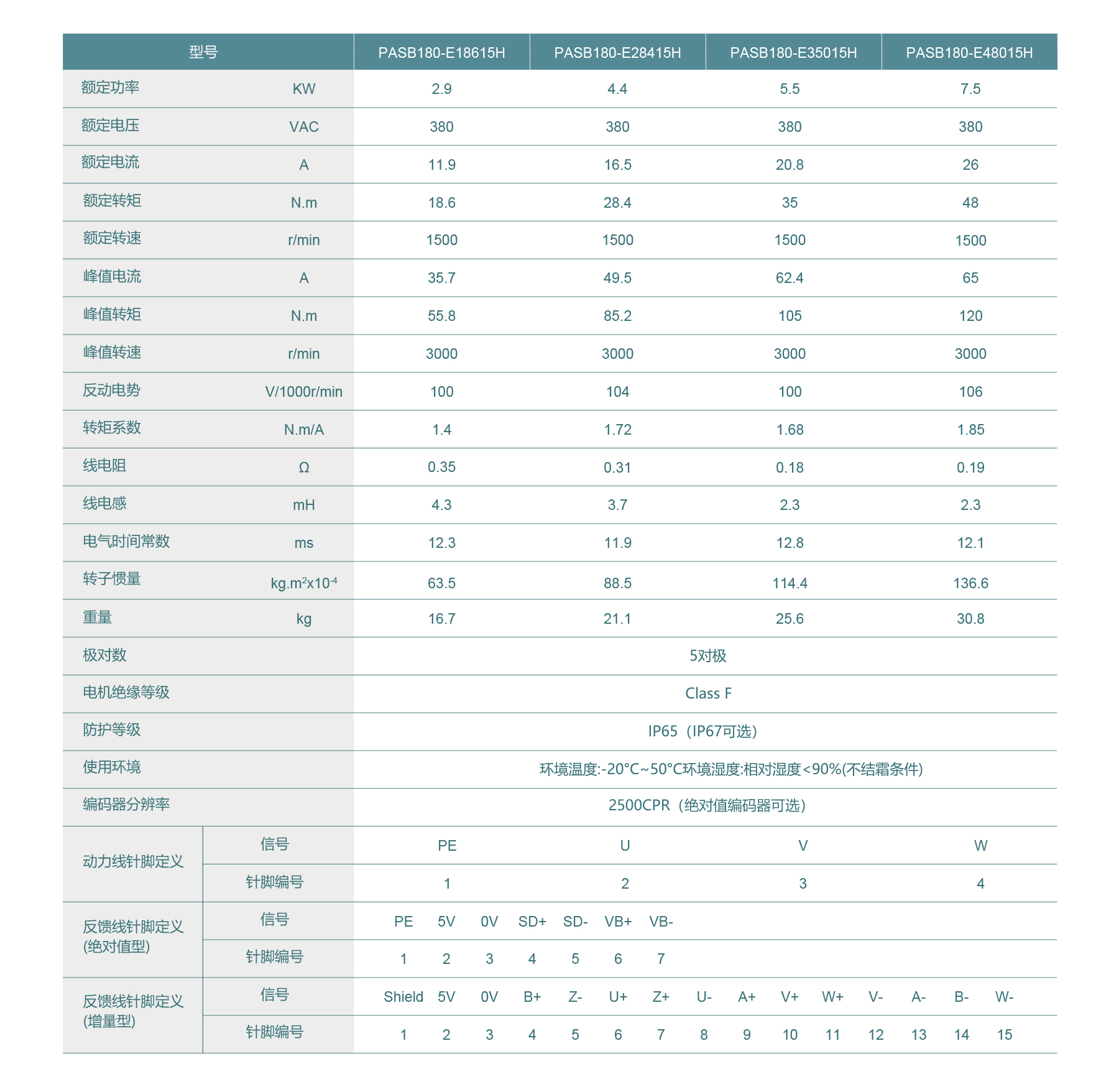

PASB180 High Inertia Series AC servo motors deliver 2.9 to 7.5 kW power with rated torque up to 65 Nm at 1500 rpm. Featuring 380 VAC voltage, peak torque to 120 Nm, Class F insulation, IP65 protection, and 23-bit absolute absolute encoder, these motors ensure precise control and reliability in demanding industrial applications.
